Professional 280KGS/600LBS Access control Double Door magnetic lock with Feedback, Timer ES230GSFX
Product Description
Features
1. With adjustable timer, 0~120s
2. With door status monitoring output
3. With unlock signal wires
4. With LED alert to indicate the lock status
5. Low current consumption
6. Reliable holding force
7. High strength material, anodized aluminum housing
8. Anti-residual magnetism designed
9. Durable and silence operation
10. CE Certificate by European Union
Product Detail
| Model | ES230GSFX |
| Feature | Fail-safe: Power to lock |
| Lock Size | 500 L X 27 H X 48 D (mm) |
| Armature Size | 180 L X 38 H X 11 D (mm) |
| Holding Force | 280KGS(600LBS) X 2 |
| Feedback | Door Status Output, NO/NC/COM |
| Time delay | 0~120s |
| Voltage | DC12V |
| Current Draw | 12V/380mA |
| Material | Finishes for shell: Anodized aluminum |
| Finishes for magnet: Zinc | |
| Finishes for Armature: Zinc | |
| Certification | CE, ROHS, CMA |
| Advantage | Low power consumption, high efficiency |
| Application | Metal doors, wooden doors, fireproof doors, glass door |
| Weight | Approx.: 4kgs |
Carton Size: 38X30X18cmPacking
Qty/Carton: 6pcs
N.W: 23KGS
G.W: 24KGS
Products Recommended
Company Information

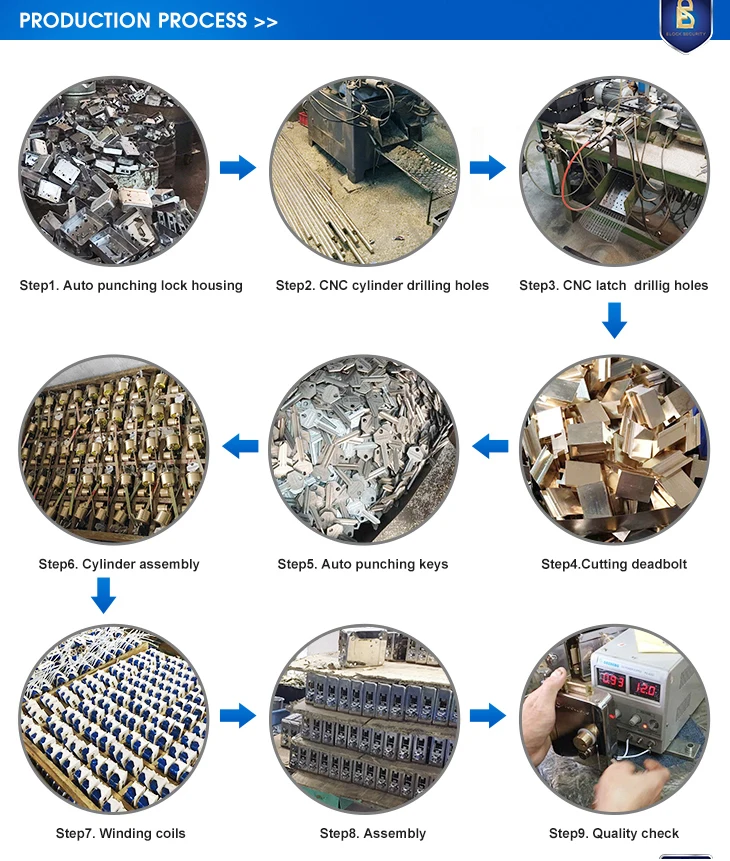

Product Process
